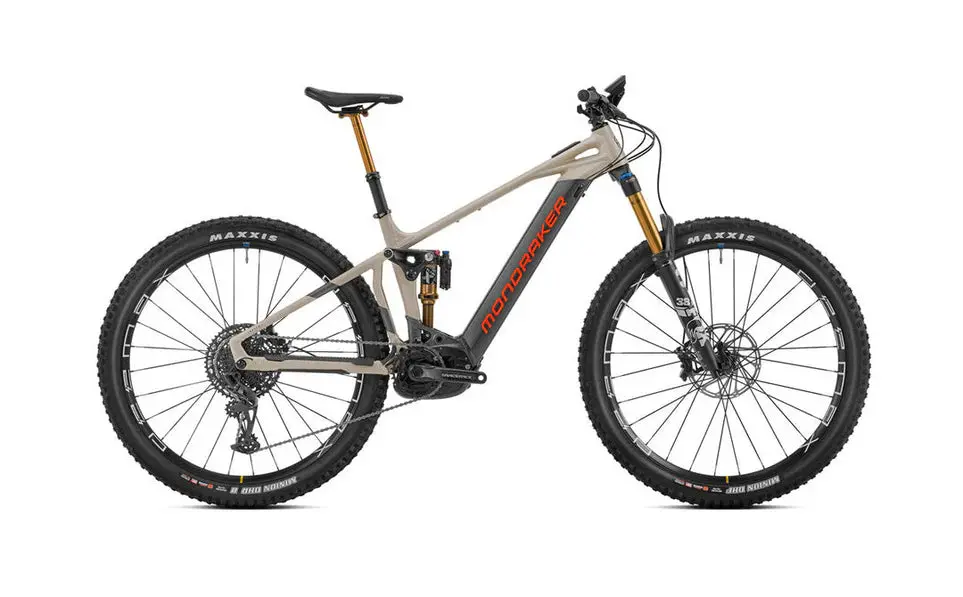

Mondraker Crafty RR Full-Suspension E-Mountain Bike – Desert Grey, Graphite & Orange

Description

Product Information

01. FRAME Crafty 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery

01A. FRAME Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive p

02. FORK Fox 38 29 Float GRIP2 Factory Kashima, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high and low-speed compression, high and low-speed rebound, air preload

03. REAR SHOCK Fox Float-X LV Factory Kashima, 205x65mm. Settings: compression 2 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings

04. SHOCK SETTINGS medium compression, medium rebound, air volume spacer 0.2

05. HEADSET Onoff Saturn tapered for 1-1/8″ to 1-1/2″ head tube, ACB sealed bearings, top 41×30.2x7x45 degreex45 degree, bottom 51.9x40x8x45 degreex45 degree

06. STEM Onoff Sulfur FG 30mm 0 degree, 6061 forged alloy, 31.8mm barbore

07. HANDLEBAR Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9 degree backsweep, 5 degree upsweep, 31.8mm barbore

08. GRIPS Onoff Desert, 1lock-on, 135mm

09. SEATPOST Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 363.5x125mm, M/L size: 418.3x150mm, XL size: 475.1x175mm

10. SADDLE FIZIK Terra Aidon X5 145mm

11. FRONT BRAKE Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

12. REAR BRAKE Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

13. BRAKE LEVER Sram Code R, tool-free reach adjust

14. FRONT HUB Mavic, Boost 15x110mm, IS 6 bolts

15. REAR HUB Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts

16. FRONT TIRE Maxxis Minion DHF 29×2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead

17. REAR TIRE Maxxis Minion DHR II 29×2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead

18. CRANKSET Race Face Aeffect ebike, 165mm

19. RINGS Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD

20. PEDALS N/A

21. CHAIN Sram NX Eagle, 12s, Powerlock

22. REAR DERAILLEUR Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1

23. CASSETTE Sram XG-1230, 11-50T, 12s

24. MOTOR Bosch Performance Line CX Cruise (25Km/h) Smart System

25. BATTERY Bosch Powertube 750Wh

26. DISPLAY Bosch Kiox 300 / Bosch Mini Remote / Bosch System Controller

27. DERAILLEUR HANGER Mondraker M068
