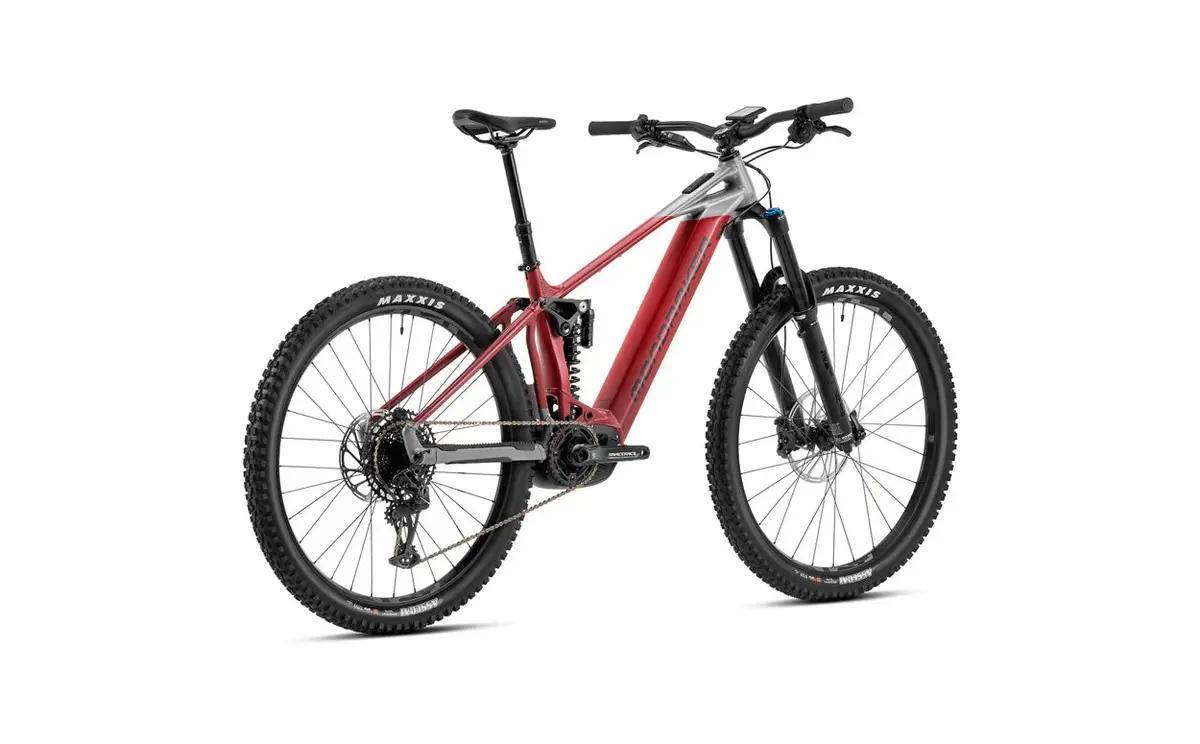

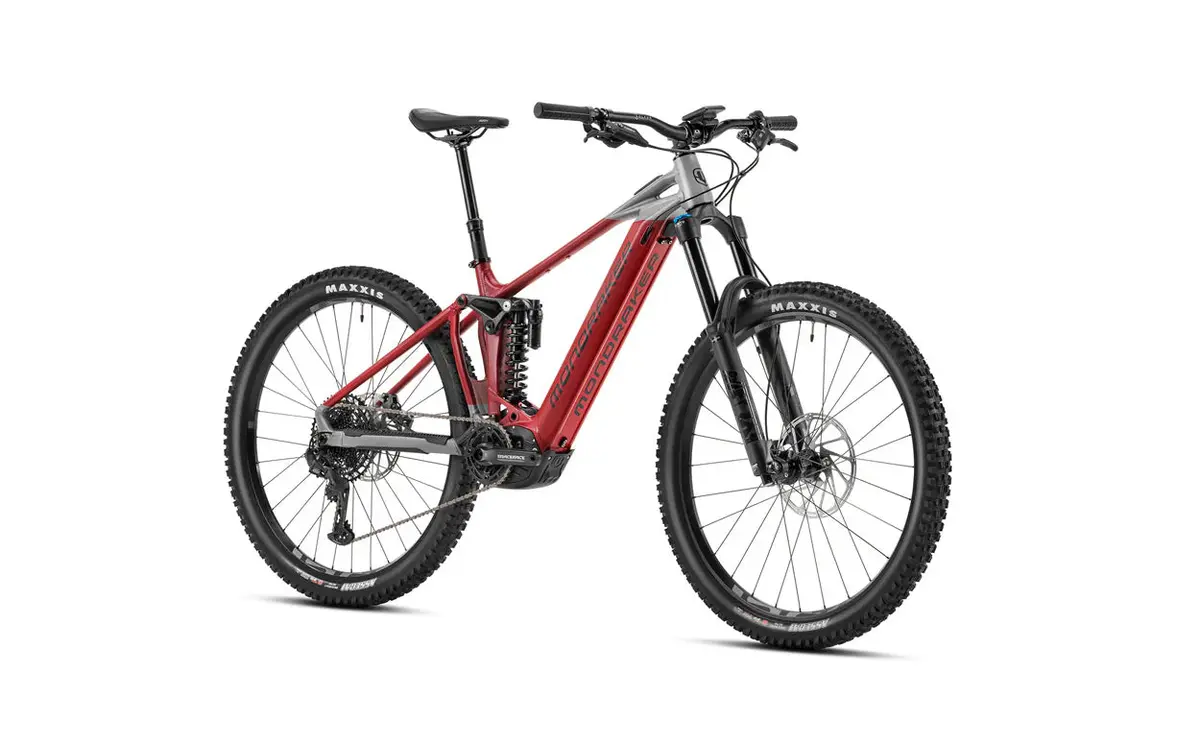

2023 Mondraker Level R Full-Suspension Mountain Bike in Cherry Red and Grey

Description

PRODUCT INFORMATION

01. FRAME Level 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 170mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle,

01A. FRAME tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers

02. FORK Fox 38 29 Float GRIP EVOL Rhythm, 180mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload

03. REAR SHOCK Fox DHX Performance 2P, 225x75mm. Settings: low-speed compression, low-speed rebound, spring preload. Trunnion top mount, 25x10mm bottom bushings

04. SHOCK SETTINGS Medium compression, medium rebound. Spring rate: S/M size 300 lbs, L size 350 lbs, XL size 400 lbs

05. HEADSET Onoff Saturn tapered for 1-1/8″ to 1-1/2″ head tube, ACB sealed bearings, top 41×30.2x7x45 degreex45 degree, bottom 51.9x40x8x45 degreex45 degree

06. STEM Onoff Sulfur FG 30mm 0 degree, 6061 forged alloy, 31.8mm barbore

07. HANDLEBAR Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9 degree backsweep, 5 degree upsweep, 31.8mm barbore

08. GRIPS Onoff Twin, 1lock-on, 135mm

09. SEATPOST Onoff Pija dropper internal, diameter 31.6mm, S size: 405×95-125mm, M size 458×120-150mm, L size: 498×140-170mm, XL size: 498×140-170mm

10. SADDLE FIZIK Terra Aidon X5 145mm

11. FRONT BRAKE Sram DB8, oversized 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

12. REAR BRAKE Sram DB8, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

13. BRAKE LEVER Sram DB-8, tool-free reach adjust

14. FRONT HUB e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum,

IS 6 bolts

15. REAR HUB e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts

16. FRONT TIRE Maxxis Assegai 29×2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead

17. REAR TIRE Maxxis Assegai 29×2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead

18. CRANKSET Race Face Aeffect ebike, 165mm

19. RINGS Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD

20. PEDALS N/A

21. CHAIN Sram SX Eagle, 12s, Powerlock

22. REAR DERAILLEUR Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1

23. CASSETTE Sram PG-1210, 11-50T, 12s

24. MOTOR Bosch Performance Line CX Cruise (25Km/h) Smart System

25. BATTERY Bosch Powertube 750Wh

26. DISPLAY Bosch Intuvia 100 / Bosch Mini Remote / Bosch System Controller

27. DERAILLEUR HANGER Mondraker M068

28. SIZES S: 380mm / M: 420mm / L: 450mm / XL: 490mm
