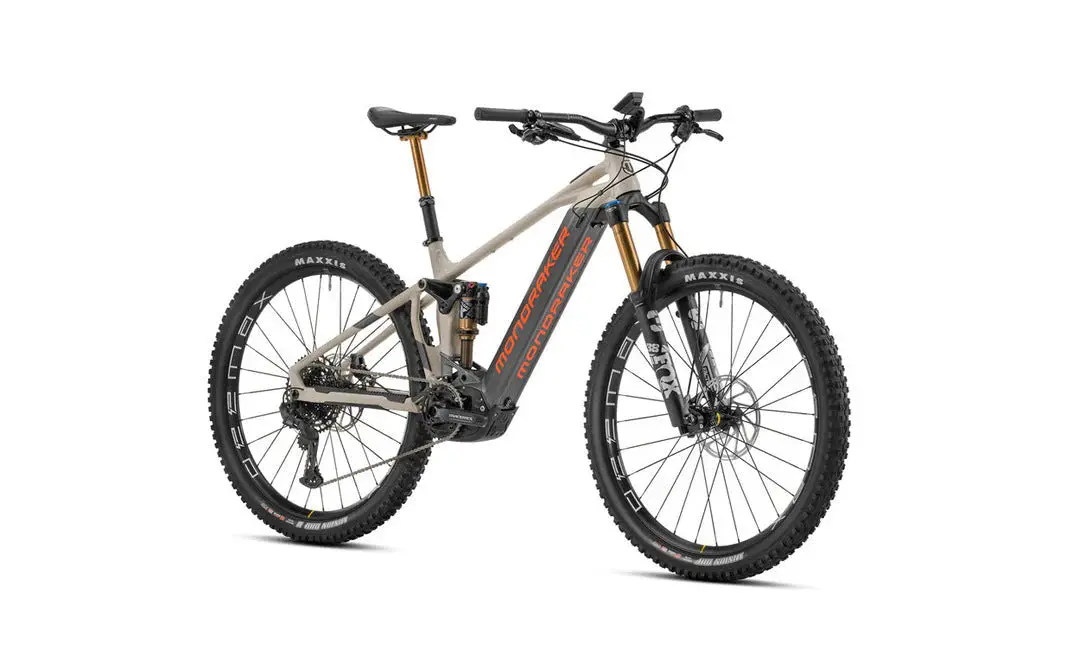

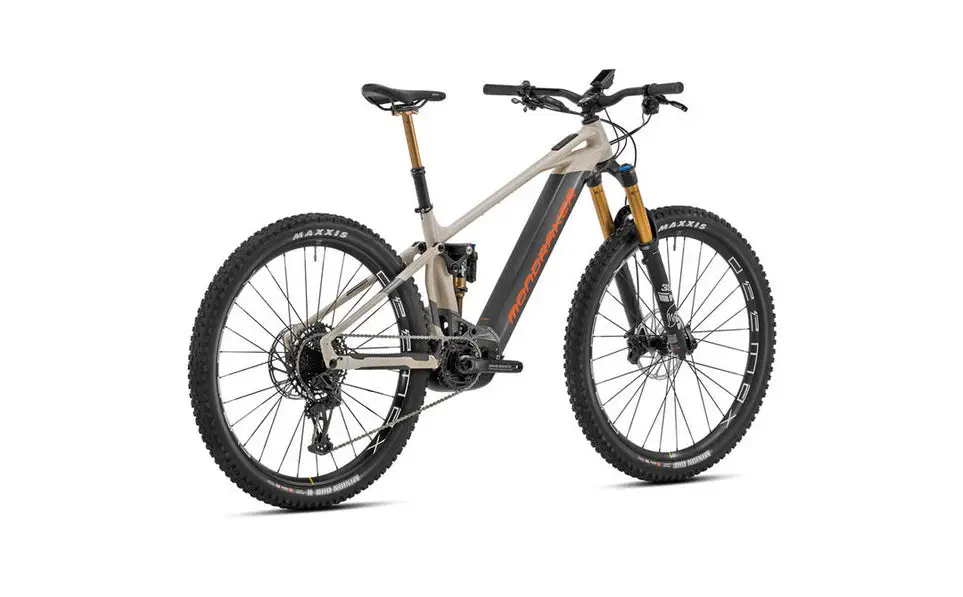

2023 Mondraker Crafty Carbon RR Full-Suspension Mountain Bike – Matte Grey & Vibrant Orange

Description

PRODUCT INFORMATION

01. FRAME Crafty Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube

01A. FRAME One-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers. Optional MIND System (EU

02. FORK Fox 38 29 Float GRIP Performance, 160mm, e-bike optimized, tapered steerer tube, Boost 15x110mm axle, 44mm offset, 68mm OD crown. Settings: 3 positions with micro adjust compression, low-speed rebound

03. REAR SHOCK Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings

04. SHOCK SETTINGS medium compression, medium rebound, air volume spacer 0.2
05. HEADSET Acros custom for 1-1/2″ head tube, angular contact bearings 40x52x7, Internal cable routing

06. STEM Onoff Krypton FG 30mm, CNC, 31.8mm barbore

07. HANDLEBAR Onoff Krypton 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9 degree backsweep, 5 degree upsweep, 31.8mm barbore

08. GRIPS Onoff Desert, 1lock-on, 135mm

09. SEATPOST Onoff Pija dropper internal, diameter 31.6mm, S size: 405×95-125mm, M size 458×120-150mm, L size: 498×140-170mm, XL size: 498×140-170mm

10. SADDLE FIZIK Terra Aidon X5 145mm

11. FRONT BRAKE Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

12. REAR BRAKE Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

13. BRAKE LEVER Sram DB8, SwingLink and lever pivot bearings, tools-free reach and contact point adjust

14. FRONT HUB Mavic, Boost 15x110mm, IS 6 bolts

15. REAR HUB Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts

16. FRONT TIRE Maxxis Minion DHF 29×2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead

17. REAR TIRE Maxxis Minion DHR II 29×2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead

18. CRANKSET Race Face Aeffect ebike, 165mm

19. RINGS Sram X-Sync 2 Eagle 34T, alloy, narrow-wide, 104 BCD

20. PEDALS N/A

21. CHAIN Sram NX Eagle, 12s, Powerlock

22. REAR DERAILLEUR Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1

23. CASSETTE Sram XG-1230, 11-50T, 12s

24. MOTOR Bosch Performance Line CX Cruise (25Km/h) Smart System

25. BATTERY Bosch Powertube 750Wh

26. DISPLAY Bosch Kiox 300 / Bosch Mini Remote / Bosch System Controller

27. DERAILLEUR HANGER Mondraker M068
