Description
Description

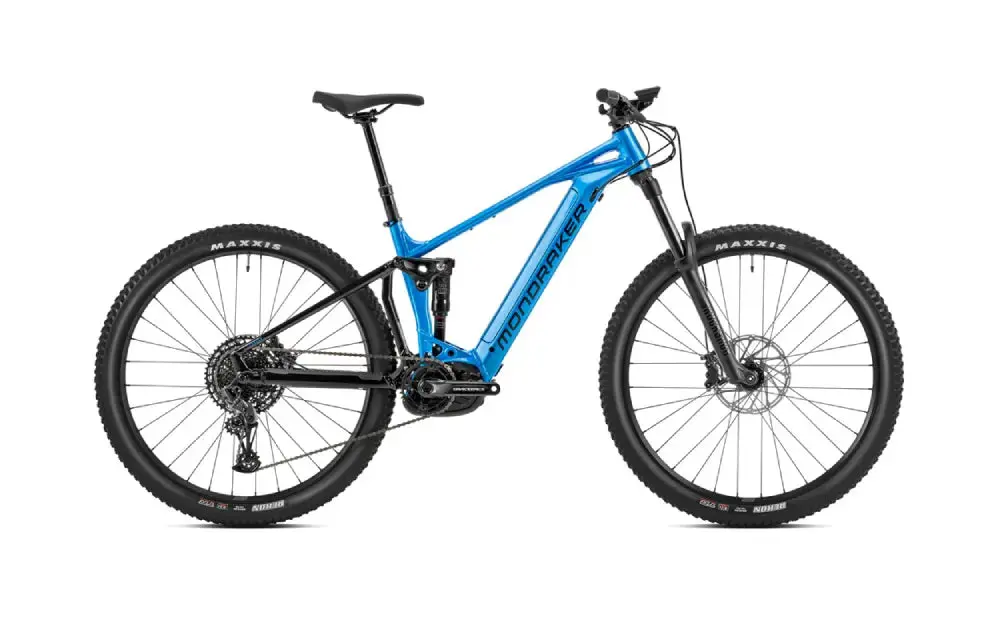

The Chaser R is our best value ebike if you’re looking for a competitive, efficient ride rocking Mondraker’s market leading tech. The frame’s been optimized so that it’s up for anything. Trails and more trails, ascents and descents, technical trails or gnarr, the CHASER R won’t be the one holding you back if you’re thinking of sending it. The ZERO suspension system, FORWARD GEOMETRY and STEALTH ALLOY EVO make it a benchmark, technologically speaking. If we add in to the mix the optimization of the kinematics of the rear suspension you just couldn’t ask for more. For 2023, in addition to the Mini Remote control and integrated System Controller, it features Bosch’s elegant Intuvia 100 display. The CHASER R is a Mondraker thoroughbred at a very reasonable price point.
SPECIFICATION
|
01. FRAME |
Chaser 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery |
|
01A. FRAME |
Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive p |
|
02. FORK |
Fox 36 29 Float FIT GRIP EVOL Rhythm, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: sweep adjust compression, Low-speed rebound, air preload |
|
03. REAR SHOCK |
Fox Float DPS Performance, 205x65mm. Settings: Compression 3 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings |
|
04. SHOCK SETTINGS |
medium compression, medium rebound, air volume spacer 0.4 |
|
05. HEADSET |
Onoff Saturn tapered for 1-1/8″ to 1-1/2″ head tube, ACB sealed bearings, top 41×30.2x7x45 degreex45 degree, bottom 51.9x40x8x45 degreex45 degree |
|
06. STEM |
Onoff Sulfur FG 30mm 0 degree, 6061 forged alloy, 31.8mm barbore |
|
07. HANDLEBAR |
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9 degree backsweep, 5 degree upsweep, 31.8mm barbore |
|
08. GRIPS |
Onoff Twin, 1lock-on, 135mm |
|
09. SEATPOST |
Onoff Pija dropper internal, diameter 31.6mm, S size: 405×95-125mm, M size 458×120-150mm, L size: 498×140-170mm, XL size: 498×140-170mm |
|
10. SADDLE |
MDK ebike black |
|
11. FRONT BRAKE |
Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
|
12. REAR BRAKE |
Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
|
13. BRAKE LEVER |
Sram DB8, tool-free reach adjust |
|
14. FRONT HUB |
Mavic, Boost 15x110mm, IS 6 bolts |
|
15. REAR HUB |
Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts |
|
16. FRONT TIRE |
Maxxis Rekon 29×2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead |
|
17. REAR TIRE |
Maxxis Rekon 29×2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead |
|
18. CRANKSET |
Race Face Aeffect ebike, 165mm |
|
19. RINGS |
Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD |
|
20. PEDALS |
N/A |
|
21. CHAIN |
Sram SX Eagle, 12s, Powerlock |
|
22. REAR DERAILLEUR |
Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
|
23. CASSETTE |
Sram PG-1210, 11-50T, 12s |
|
24. MOTOR |
Bosch Performance Line CX Cruise (25Km/h) Smart System |
|
25. BATTERY |
Bosch Powertube 750Wh |
|
26. DISPLAY |
Bosch Intuvia 100 / Bosch Mini Remote / Bosch System Controller |
|
27. DERAILLEUR HANGER |
Mondraker M068 |
|
28. SIZES |
S: 380mm / M: 420mm / L: 450mm / XL: 490mm |
