Description

VNM Forged V-11 Dually Wheels 10×285.75 Custom Made Big Rig Truck Rims

Made to Order: This product is made to order and may take up to 4 weeks to ship.

Sold As: A complete package including 6 wheels, adapters, billet center caps, billet lug nut covers, and custom mounting hardware.

Finishes: Polished Milled, Powder Coated Black/Milled, or Solid Powder Coated. Over 500 powders in stock.

These dually wheels work great on stock, leveled, and lifted trucks. If you’re not sure which tires or lift you need, or you have a specific look in mind, feel free to reach out.

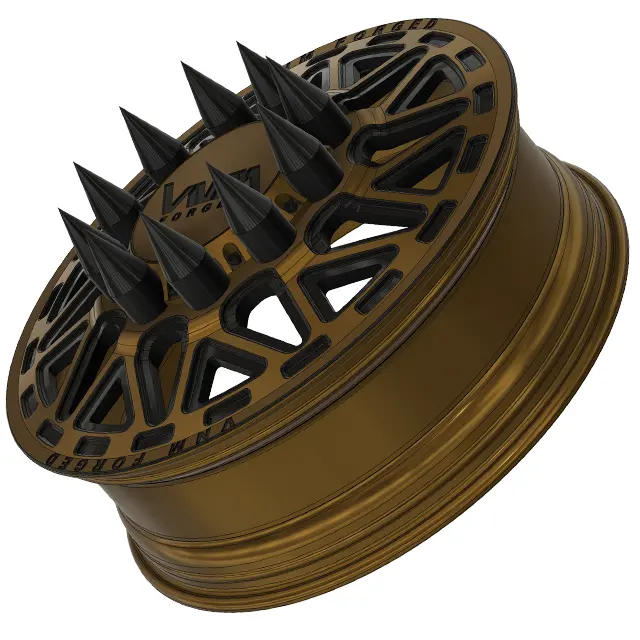

The V-11 True Directional Dually Wheel is engineered for builders who want precision, movement, and unmistakable presence. Featuring a true directional spoke layout, the V-11 creates a forward-rotating visual effect that gives the wheel an aggressive, in-motion look even at a standstill. Each spoke is CNC-machined with sharp angles and deep pockets, flowing seamlessly into the stepped outer lip for a cohesive, high-performance design.

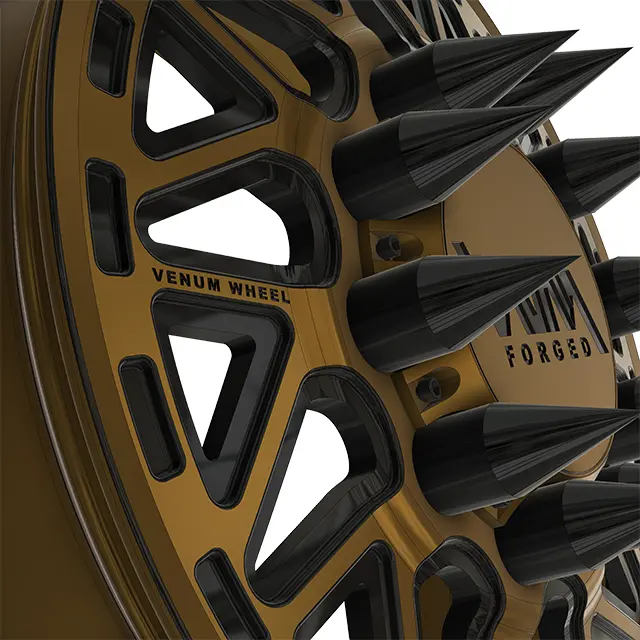

This wheel showcases layered machining with contrast accents that highlight every contour, while the billet VNM Forged center cap and spike lug nut covers deliver a bold, big-rig–inspired attitude. The directional geometry is mirrored correctly for left and right sides, ensuring proper rotation and symmetry across the truck.
Forged from high-strength aluminum and CNC-machined in the USA, the V-11 is built for heavy-duty dually applications where strength, load capacity, and durability are critical. These custom forged wheels are available in multiple sizes, offsets, bolt patterns, and finish combinations, making them ideal dually rims for modern dually trucks and big-rig–style builds.

Features

• 1 Pc Mono Block Wheel Construction
• All 6 Wheels Are Machined
• True Directional Wheels
• Designed & Manufactured in House
• All 6 Wheels Come Notched In The Center
• 90 Degree Valve Stems Included
• Custom Mounting Lug Nuts Included
• Made in Lynwood, California, USA

Wheel Specifications

• Wheel Style: Dually
• Wheel Design: V-11
• Wheel Diameter: 20″ – 30″
• Wheel Width: 8.25″
• Wheel Bolt Pattern: 10×285.75 MM (Big Rig)
• Wheel Bore: 220.1 MM
• Hub Centric: Yes
• Finish: Select Above
• Load Rating: 4,500 Lbs
• Material: Forged 6061 Aluminum

Offsets & Backspace

Wheel Diameter	Wheel Width	Back Space	Offset	Space Between Duals
20″ Wheels	8.25″	10.40″	+5.77″	3.85″
22″ Wheels	8.25″	10.40″	+5.77″	3.85″
24″ Wheels	8.25″	10.40″	+5.77″	3.85″
26″ Wheels	8.25″	9.90″	+5.27″	2.85″
28″ Wheels	8.25″	9.90″	+5.27″	2.85″
30″ Wheels	8.25″	9.90″	+5.27″	2.85″

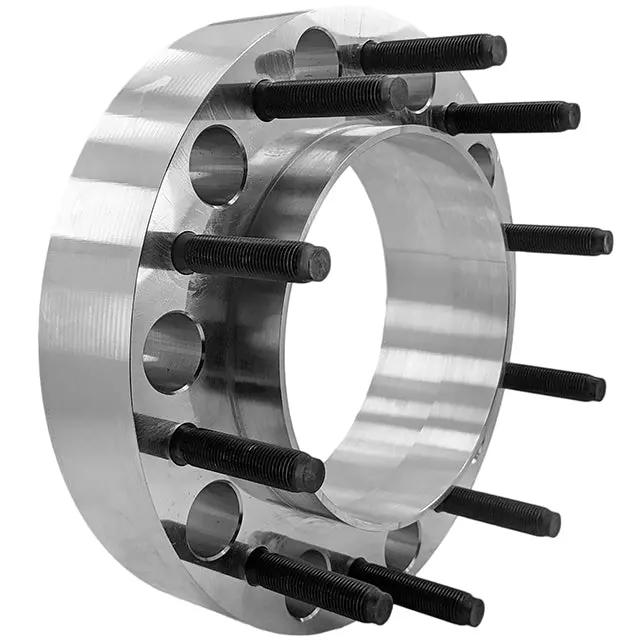

Wheel Adapter Specifications

– Billet 6061 Aluminum

• Vehicle Bolt Pattern: Any (Using Wheel Adapters)
• Vehicle Bore: Any
• Wheel Bolt Pattern: 10×285.75 MM
• Wheel Bore: 220.1 MM
• Adapter Thickness: 1.5″
• Lip Thickness: Front: 0.5″ | Rear: 1.5″
• Thread Pitch: M22x1.5
• Torque Specs: Factory Specs Recommended

Vehicle Compatibility

Year	Make	Model
1988-1998	Ford	F-350
1999-2026	Ford	F-350
1988-1998	Ford	F-450
1999-2026	Ford	F-450
1988-1998	Chevrolet	Silverado 3500
1999-2026	Chevrolet	Silverado 3500
1988-1998	GMC	Sierra 3500
1999-2026	GMC	Sierra 3500
1994-2011	Dodge	Ram 3500
2012-2026	Ram	Ram 3500
2008-2026	Ram	Ram 4500
