VNM Forged The Argo Ghost Front Super Single Wheels & Rear Dually Wheels

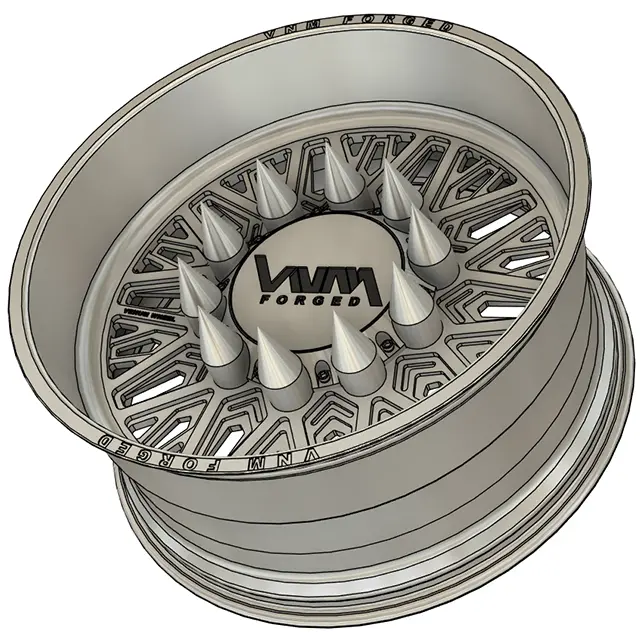

What is a Front Super Single Ghost? The Front Ghost Super Single Wheels is a direct bolt-on with no adapters, designed to mimic a 10-lug, 10×285.75 big rig pattern using a billet center cap and lug nut covers. The actual bolt pattern is concealed behind the cap.

Rear Dually Wheels: The rear dually wheels need adapters for installation.

Made to Order: This product is made to order and may take up to 4 weeks to ship.

Sold As: 2 Front Super Single Wheels + 4 Rear Dually Wheels + 2 Billet Rear Wheel Adapters + Billet Center Caps (floating or non-floating) + Billet Lug Nut Covers

Finishes: Polished milled, powder coated black/machined, or solid powder coated. over 500 powders in stock.

– Custom engraving is available on the billet center caps

Features

• 1 Pc Mono Block Wheel Construction
• 2 Front Wheels + 4 Rear Dually Wheels
• True Directional Wheels
• Designed & Manufactured in House
• Dually Wheels Notched In The Center
• Valve Stems Included
• Rear Wheel Adapters Included
• Custom Mounting Lug Nuts Included
• Made in Lynwood, California, USA

Front Wheel Specifications

• Wheel Style: Super Single Ghost (Direct Bolt-On)
• Wheel Design: The Argo
• Wheel Diameter: 20″ – 30″
• Wheel Width: 12″ – 16″
• Wheel Bolt Pattern: 8×6.5″ | 8×170 MM | 8×180 MM | 10×170 MM
• Wheel Bore: Custom
• Finish: Select Above
• Material: Forged 6061 Aluminum

Rear Wheel Specifications

• Wheel Style: Dually
• Wheel Design: The Argo
• Wheel Diameter: 20″ – 30″
• Wheel Width: 8.25″
• Wheel Bolt Pattern: 10×285.75 MM
• Wheel Bore: 220.1 MM
• Finish: Select Above
• Material: Forged 6061 Aluminum

Offsets & Backspace

Wheel Size	Style	Back Space	Off Set	Space In Between Duals
20×8.25	Dually	10.40″	+5.77″	3.85″
20×12″	Super Single	–	–	–
22×8.25	Dually	10.40″	+5.77″	3.85″
22×12″	Super Single	–	–	–
24×8.25	Dually	10.40″	+5.77″	3.85″
24×12″	Super Single	–	–	–
24×14″	Super Single	–	–	–
26×8.25	Dually	9.90″	+5.27″	2.85″
26×12″	Super Single	–	–	–
26×14″	Super Single	–	–	–
26×16″	Super Single	–	–	–
28×8.25	Dually	9.90″	+5.27″	2.85″
28×16″	Super Single	–	–	–
30×8.25	Dually	9.90″	+5.27″	2.85″
30×16″	Super Single	–	–	–

Wheel Adapter Specifications

– Billet 6061 Aluminum

• Vehicle Bolt Pattern: Any
• Vehicle Bore: Any
• Wheel Bolt Pattern: 10×285.75 MM
• Wheel Bore: 220.1 MM
• Adapter Thickness: 1.5″
• Lip Thickness: Rear: 1.5″
• Torque Specs: Factory Specs Recommended

Vehicle Compatibility

Year	Make	Model
1988-1998	Ford	F-350 Dually
1999-2025	Ford	F-350 Dually
1988-1998	Ford	F-450 Dually
1999-2025	Ford	F-450 Dually
1988-1998	Chevrolet	Silverado 3500 Dually
1999-2025	Chevrolet	Silverado 3500 Dually
1988-1998	GMC	Sierra 3500 Dually
1999-2025	GMC	Sierra 3500 Dually
1994-2011	Dodge	Ram 3500 Dually
2012-2025	Ram	Ram 3500 Dually
2008-2025	Ram	Ram 4500 Dually
