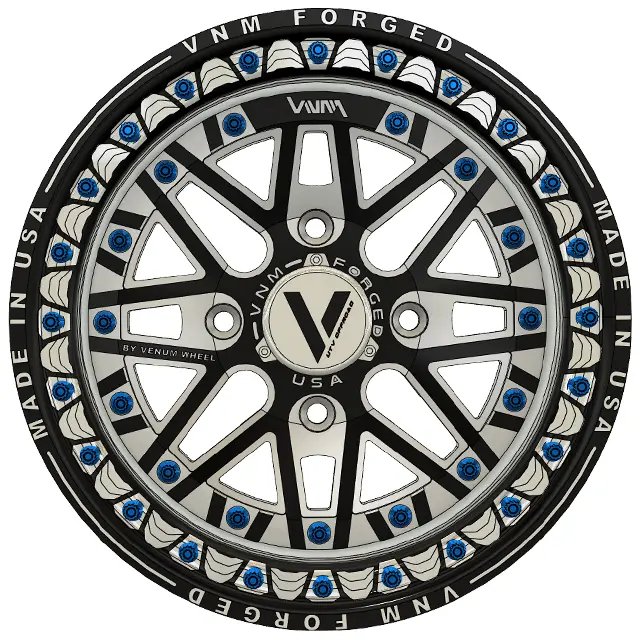

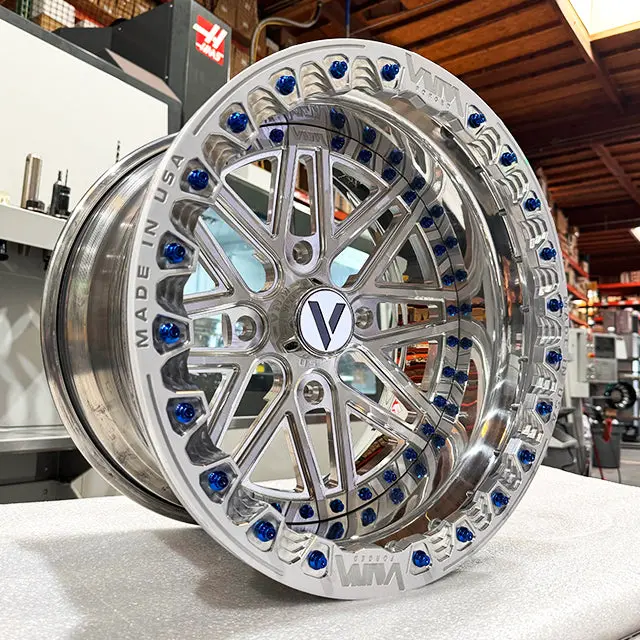

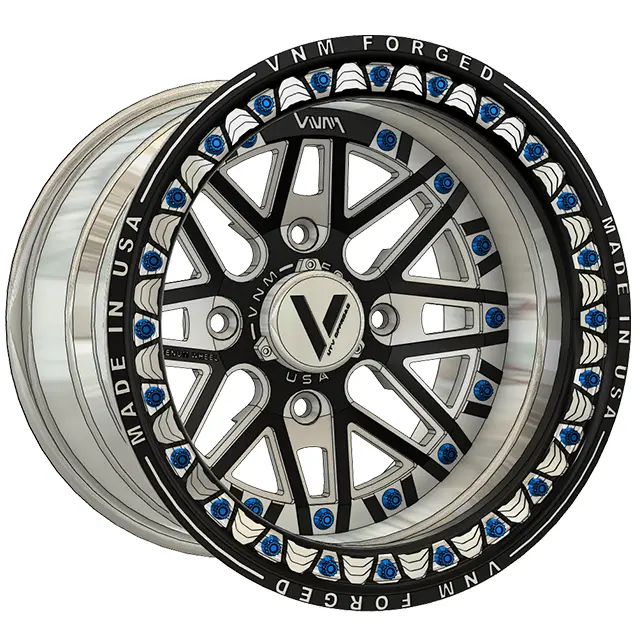

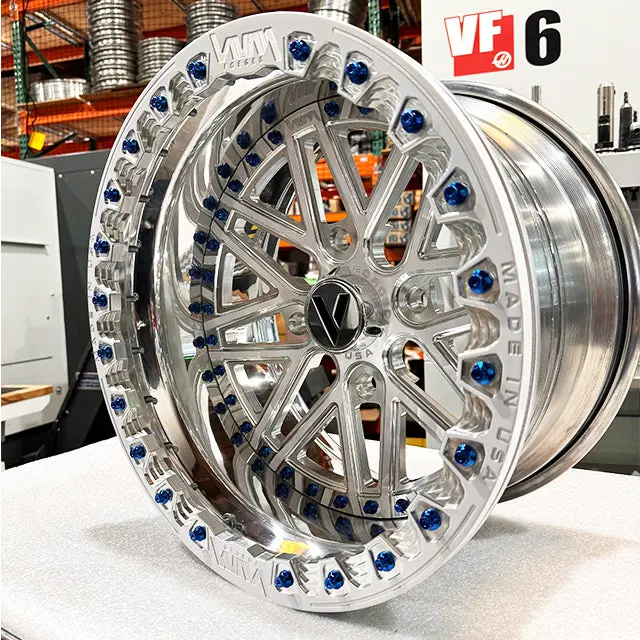

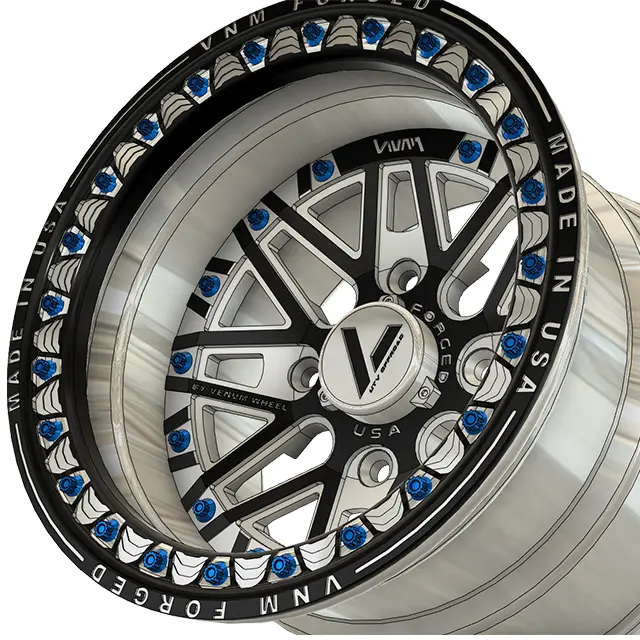

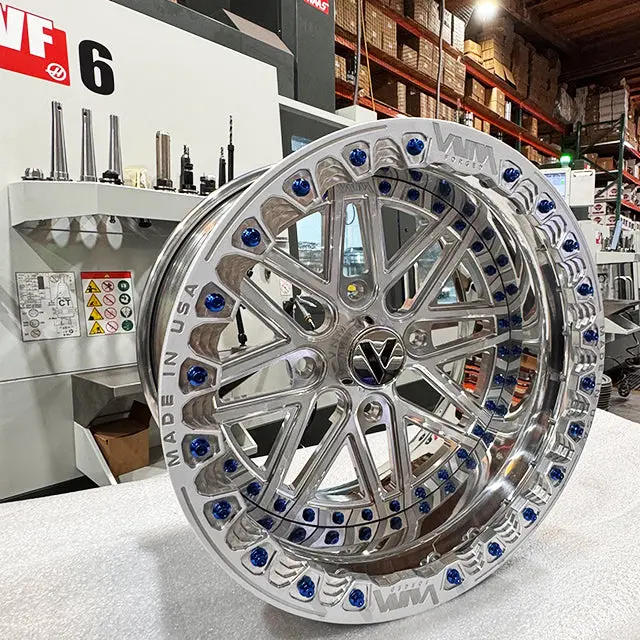

V-2 Beadlock UTV Wheels Lightweight Billet Aluminum For Can Am RZR YXZ
V-2 Beadlock UTV Wheels, designed using lightweight Forged Aluminum 6061, are engineered to perform exceptionally on various terrains, both on and off-road. Here are the features and specifications
Wheels are 100% customizable & made to order.
For: Can Am X3, Polaris Rzr, Honda Talon, Yamaha Yxz & More – 4 Lug
By: Venum Wheel, Made in the USA
Features
- 2 Pc Forged Wheel Construction: Crafted from Forged Aluminum 6061, ensuring lightweight durability.
- Pre-Assembled Wheels: Ready for immediate installation upon purchase.
- Face Profile Options: Flat or concave? Concave adds a more dynamic 3D effect with an inward slope, making it more appealing.
- Beadlock Style Options: Standard is spun aluminum, while the upgrade option is a billet beadlock. Billet beadlock is more appealing and allows for 2 tone powder coating.
- Beadlock Hardware Included
- Billet Center Caps Included
- Manufactured in California, U.S.A.
Specifications
- Model: V-2
- Wheel Size: 15″ & 17″
- Wheel Width: Select Above
- Bolt Pattern: 4×110 MM | 4×137 MM | 4×156 MM
- Vehicle Compatibility: 4 Lugs
- Lug Nut Holes: Conical Seat
- Finish: Custom Options
- Comes With Valve Stems
Vehicle Fitment
| Years | Make | Model | Pattern | Thread |
|---|---|---|---|
| All Years | Articat | Wildcat | 4×156 MM | 12×1.5 |
| 2017-2022 | Can-Am | Maverick X3 | 4×137 MM | 12×1.5 |
| All Years | Honda | Talon | 4×137 MM | 12×1.5 |
| 2016-2025 | Polaris | Rzr 1000 | 4×156 MM | 12×1.5 |
| 2016-2019 | Yamaha | YXZ | 4×110 MM | 12×1.25 |
| 2020-2024 | Yamaha | YXZ | 4×156 MM | 12×1.25 |
Offsets & Backspace
| Size | Outter | Inner | Backspace | Offset | Profile |
|---|---|---|---|---|
| 15″ x 7″ | 17″ x 7″ | 2″ + 5″ | 4.75″ | 19 mm | Flat |
| 15″ x 8″ | 17″ x 8″ | 4″ + 4″ | 3.75″ | -19 mm | Flat |
| 15″ x 10.5″ | 17″ x 10.5″ | 5.5″ + 5″ | 4.75″ | -25 mm | Flat |
| 15″ x 14″ | 17″ x 14″ | 8″ + 6″ | 5.75″ | -44 mm | Flat |
| 17″ x 10″ | 3″ + 7″ | 6.75 | 31 mm | Flat |
| 15″ x 7″ | 17″ x 7″ | 2″ + 5′ | 4.25″ | 6 mm | Concave |
| 15″ x 8″ | 17″ x 8″ | 4″ + 4″ | 3.25″ | -31 mm | Concave |
| 15″ x 10.5″ | 17″ x 10.5″ | 5.5″ + 5″ | 4.25″ | -38 mm | Concave |
| 15″ x 14″ | 17″ x 14″ | 8″ + 6″ | 5.25″ | -57 mm | Concave |
| 17″ x 10″ | 3″ + 7″ | 6.25 | 19 mm | Concave |
