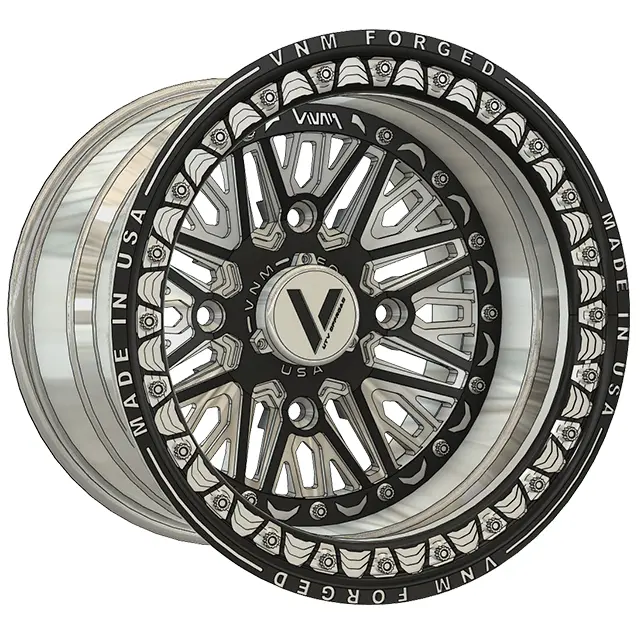

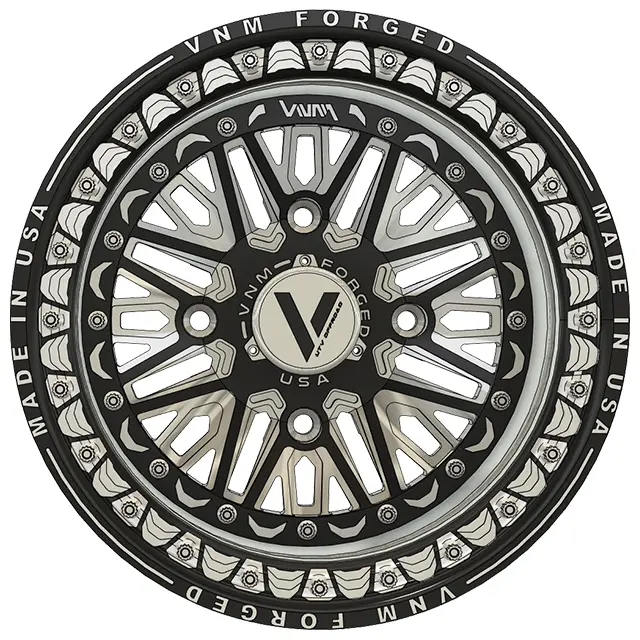

V-1 The Argo Beadlock UTV Wheels Side by Side Can Am Polaris SXS
Sold as a set of 4 wheels with beadlock rings, lug nuts & hardware
Wheels are made to order
Made in the USA
The VNM Forged V1 The Argo wheels are 100% customizable forged wheels, perfect for side by side, UTV, and golf cart applications. Built for Can-Am Maverick X3, Can-Am X3, Polaris RZR, Honda Talon, and Yamaha YXZ, these rims deliver strength and performance.
The Argo design features redefined spokes with detailed machine work, chamfers, and step-downs—most of the wheel is fully 3D machined, giving an awesome bold look. A customer favorite, available as offroad rims or beadlock wheels.
Features & Options
- 2-Piece Construction: Forged 2-piece bolt-in center wheels with a billet center and premium hardware—lightweight, durable, and fully customizable.
- Concave Face Profile: Offers a deep, aggressive look with a 3D inward design.
- Beadlock Options: Each wheel comes standard with spun aluminum beadlock rings. Elevate your build with billet or AR Billet Series beadlocks for a refined, high-end finish
- Center Cap Options Standard center caps are solid, but you can upgrade to floating caps that stay upright while driving. Add a custom logo for an even more unique look..
Wheel Specifications
- Model: V-1 The Argo
- Diameter: 15″, 17″, 18″ & Custom
- Width: Varies (Select Above)
- Bolt Patterns: 4x110mm, 4x137mm, 4x156mm
- Face Profile: Concave
- Lug Seats: Conical (Acorn)
- Beadlock Style: Standard – Spun Aluminum
- Finishes: Custom
- Material: Forged Aluminum Centers & Spun Aluminum Barrels
- Center Cap: Billet Solid Center Caps
- Valve Stems Included
Vehicle Fitment Guide
| Years | Make | Model | Bolt Pattern / Thread Pitch |
|---|---|---|---|
| All Years | Arctic Cat | Wildcat | 4x156mm / 12×1.5 |
| 2017–2025 | Can-Am | Maverick X3 | 4x137mm / 12×1.5 |
| All Years | Honda | Talon | 4x137mm / 12×1.5 |
| 2016–2025 | Polaris | RZR 1000 | 4x156mm / 12×1.5 |
| 2016–2019 | Yamaha | YXZ | 4x110mm / 12×1.25 |
| 2020–2025 | Yamaha | YXZ | 4x156mm / 12×1.25 |
Offset & Backspace Details
| Size | Outer / Inner | Backspace | Offset | Profile |
|---|---|---|---|---|
| 15×7 / 17×7 | 2″ / 5″ | 4.25″ | +6mm | Concave |
| 15×8 / 17×8 | 4″ / 4″ | 3.25″ | -31mm | Concave |
| 15×10.5 / 17×10.5 | 5.5″ / 5″ | 4.25″ | -38mm | Concave |
| 15×14 / 17×14 | 8″ / 6″ | 5.25″ | -57mm | Concave |
| 17×10 | 3″ / 7″ | 6.25″ | +19mm | Concave |
