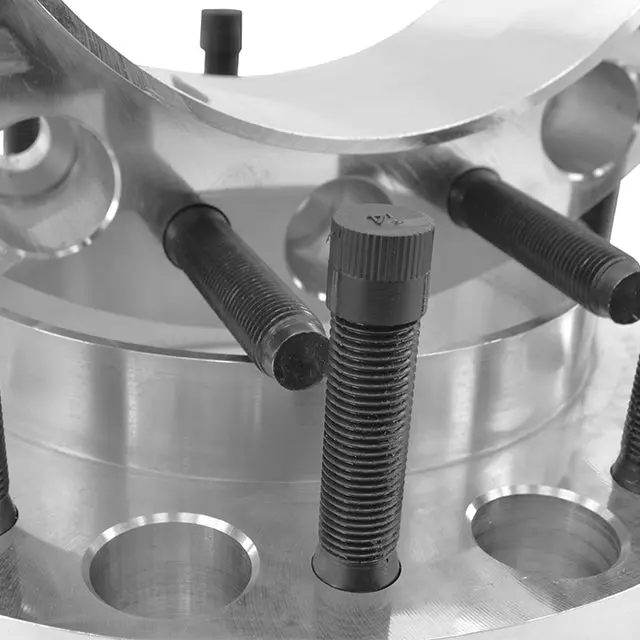

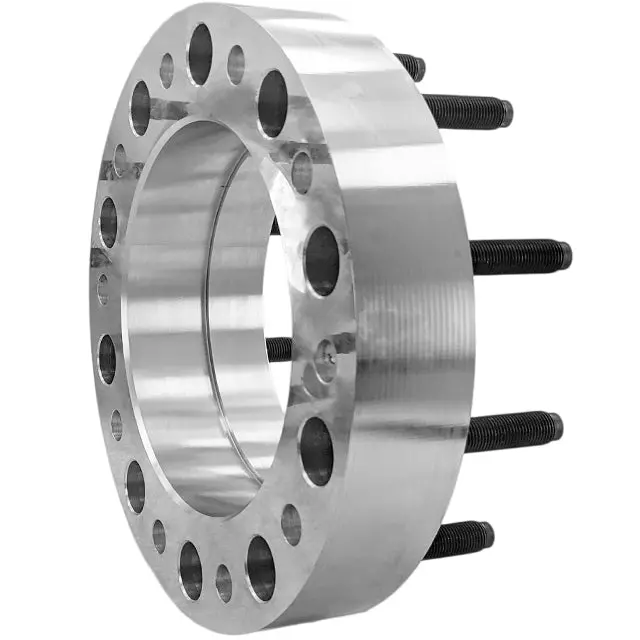

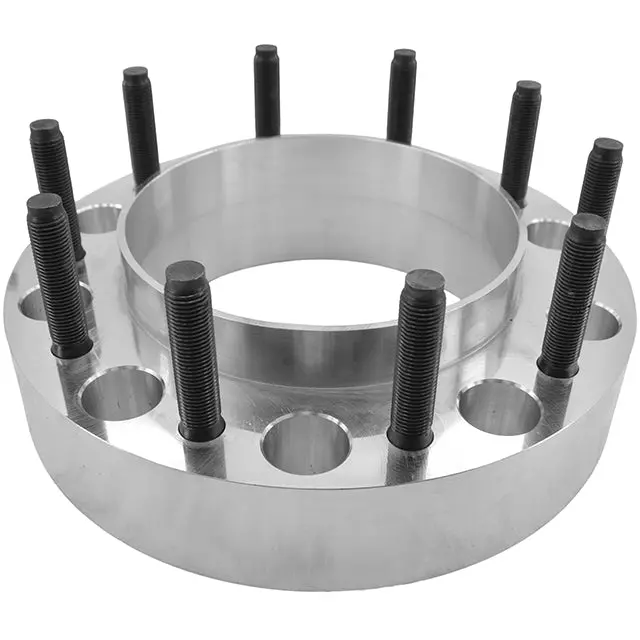

Ford 10×7.25″ To 10×225 MM 10 Lug Wheel Adapters Billet Aluminum

** Made to Order: Please allow up to 7 business days to ship **

CNC-machined in the USA from premium 6061-T6 aluminum billet bars, these hub-centric wheel adapters convert your Ford 10×7.25″ bolt pattern to 10x225mm for running 19.5″ wheels (Alcoa and many aftermarket options).s

Need a custom thickness or sizing? Call (310) 763-1437.

Features

• Made from 6061-T6 billet aluminum
• Allows fitment of 19.5″ wheels on applicable setups
• Compatible with Alcoa and many aftermarket 10x225mm wheels
• Hub/Wheel-centric design helps prevent vibration at highway speeds
• Improves handling feel and adds an aggressive stance
• Designed for extreme-duty use and towing applications
• Tested towing up to 25,000 lbs (application-dependent)
• Includes mounting hardware

Specifications

• Vehicle Bolt Pattern: 10×7.25″
• Vehicle Hub Bore: 138.68mm (5.46″)
• Wheel Bolt Pattern: 10×225 mm
• Wheel Center Bore: 170.1 mm
• Thread Pitch: 14×1.5
• Thickness: 1.5″ – 3″
• Front Wheel Lip: 0.45″
• Rear Wheel Lip: 1″
• Material: Billet Aluminum 6061-T6
• Hardware Grade: 10.9 Steel
• Finish: Machine Finish
• Torque Specs: Follow factory torque specifications
• Included: Pressed-in studs & lug nuts

Vehicle Compatibility

The wheels being installed must be 10x225mm.

Fitment Reference

Year	Make	Model	Thread Pitch
1988–1998	Ford	F-450	5/8
1988–1998	Ford	E-53	5/8
