Description

V-7 VNM Forged Dually Wheels 10×285.75 Custom Made Truck Rims Big Rig

Made to Order: This product is made to order and may take up to 4 weeks to ship.

Sold As: A complete package including 6 wheels, adapters, billet center caps, billet lug nut covers, and custom mounting hardware.

Finishes: Polished Milled, Powder Coated Black/Milled, or Solid Powder Coated. Over 500 powders in stock.

These dually wheels work great on stock, leveled, and lifted trucks. If you’re not sure which tires or lift you need, or you have a specific look in mind, feel free to reach out.

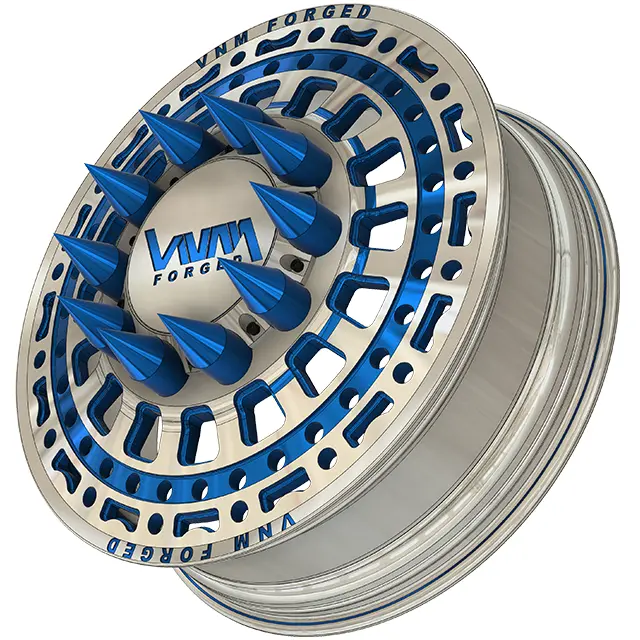

The V-7 Dually Wheel by VNM Forged is designed to make a bold statement while delivering uncompromising strength. Featuring a precision-machined multi-window face, stepped outer lip, and aggressive hardware detailing, the V-7 blends modern performance styling with heavy-duty capability.
The wheel showcases deep CNC-cut pockets accented with contrast finishes, giving it a layered, high-end look that stands out from every angle. The billet center cap is surrounded by spike lug nut covers, adding an unmistakable aggressive edge that defines the V-series identity. Subtle chamfers, clean machining lines, and a robust forged construction complete the design.
Built from forged aluminum and CNC-machined in the USA, the V-7 is engineered specifically for dually trucks that demand both strength and style. Available in multiple sizes, offsets, bolt patterns, and custom finishes, the V-7 can be tailored to match your truck’s color scheme and stance.

Features

• 1 Pc Mono Block Wheel Construction
• All 6 Wheels Are Machined
• Designed & Manufactured in House
• All 6 Wheels Come Notched In The Center
• 90 Degree Valve Stems Included
• Custom Mounting Lug Nuts Included
• Made in Lynwood, California, USA

Wheel Specifications

• Wheel Style: Dually
• Wheel Design: V-7
• Wheel Diameter: 20″ – 30″
• Wheel Width: 8.25″
• Wheel Bolt Pattern: 10×285.75 MM (Big Rig)
• Wheel Bore: 220.1 MM
• Hub Centric: Yes
• Finish: Select Above
• Load Rating: 4,500 Lbs
• Material: Forged 6061 Aluminum

Offsets & Backspace

Wheel Diameter	Wheel Width	Back Space	Offset	Space Between Duals
20″ Wheels	8.25″	10.40″	+5.77″	3.85″
22″ Wheels	8.25″	10.40″	+5.77″	3.85″
24″ Wheels	8.25″	10.40″	+5.77″	3.85″
26″ Wheels	8.25″	9.90″	+5.27″	2.85″
28″ Wheels	8.25″	9.90″	+5.27″	2.85″
30″ Wheels	8.25″	9.90″	+5.27″	2.85″

Wheel Adapter Specifications

– Billet 6061 Aluminum

• Vehicle Bolt Pattern: Any (Using Wheel Adapters)
• Vehicle Bore: Any
• Wheel Bolt Pattern: 10×285.75 MM
• Wheel Bore: 220.1 MM
• Adapter Thickness: 1.5″
• Lip Thickness: Front: 0.5″ | Rear: 1.5″
• Thread Pitch: M22x1.5
• Torque Specs: Factory Specs Recommended

Vehicle Compatibility

Year	Make	Model
1988-1998	Ford	F-350
1999-2026	Ford	F-350
1988-1998	Ford	F-450
1999-2026	Ford	F-450
1988-1998	Chevrolet	Silverado 3500
1999-2026	Chevrolet	Silverado 3500
1988-1998	GMC	Sierra 3500
1999-2026	GMC	Sierra 3500
1994-2011	Dodge	Ram 3500
2012-2026	Ram	Ram 3500
2008-2026	Ram	Ram 4500
