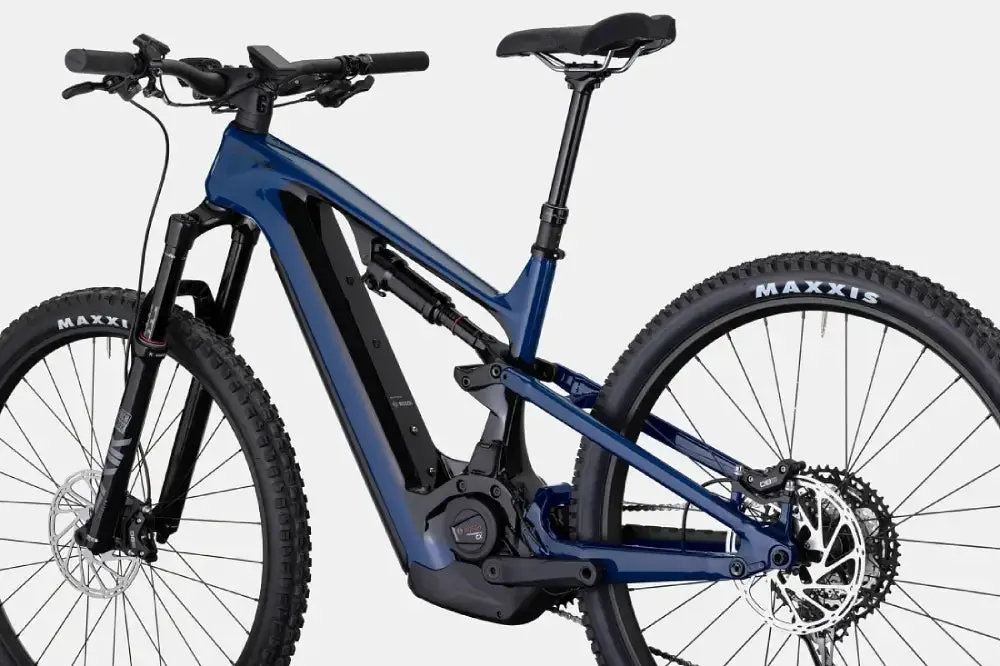

Specialized Moterra Carbon 1 Electric Mountain Bike

Description

Breaking Boundaries

A dual-suspension e-mountain bike built to crush boundaries. With its intuitive handling & the power and range of the Bosch 750Wh system, nothing is out of reach.

Where it thrives

Challenging trails, Up and down hills, Out in the elements

What it’s built for

Handling, Traction, Efficiency, Durability

Highlights

• Proportional Response Tuned carbon frame / RockShox Lyrik Select fork, 150mm travel
• Bosch SmartSystem – 750wh battery & Performance CX motor
• Shimano XTR/XT 12-speed drivetrain

Specs

DETAILS

• Platform Moterra Neo
• Model Name Moterra Carbon 1
• Model Code C25172U

FRAMESET

• Frame Moterra Carbon Front Triangle, SmartForm C1 Alloy Swingarm, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH hanger, post mount brake, 1.5” – 1.8” tapered headtube, 18mm two-bolt kickstand mount
• Fork RockShox Lyrik Select+, 150mm, DebonAir, 15x110mm thru-axle, tapered steered, 44mm offset
• Headset Acros integrated sealed bearing, tapered
• Rear Shock RockShox Deluxe Select+, DebonAir, 2-Pos mode adjust, adjustable rebound

E-SYSTEM

• Drive Unit Bosch Performance Line CX 250W
• Battery Bosch PowerTube, 750Wh
• Charger Bosch 4A
• Display Bosch Kiox 300 w/ LED remote
• Certifications UL 2849

DRIVETRAIN

• Rear Derailleur Shimano XT
• Shifters Shimano XT, 12-speed
• Chain Shimano XT, 12-speed
• Crank FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T
• Rear Cogs Shimano XT, 10-51, 12-speed

BRAKES

• Brakes Shimano XT 8120 4-piston hydraulic disc, 203/203mm RT76 rotors
• Brake Levers Shimano XT hydraulic disc

WHEELS

• Rims WTB KOM Trail i30 TCS, 32h, tubeless ready
• Spokes DT Swiss Champion
• Tire Size 2.6
• Wheel Size 29
• Hubs (F) Formula 15x110mm thru-axle / (R) DT Swiss, 12x148mm thru-axle
• Tires (F) Maxxis Minion DHF, 29×2.6″, EXO, tubeless ready / (R) Maxxis Rekon, 29×2.6″ (27.5×2.6″ – size Small), EXO, tubeless ready
• Front Tire Maxxis Minion DHF, 29×2.6″, EXO, tubeless ready
• Rear Tire Maxxis Rekon, 29×2.6″ (27.5×2.6″ – size Small), EXO, tubeless ready

COMPONENTS

• Handlebar HollowGram SAVE riser bar, Carbon, 35mm clamp, 30mm rise, 8° sweep, 5° rise, 780mm
• Stem Cannondale 2, 6061 Alloy, 35mm, 0°
• Grips Fabric FunGuy
• Saddle Fabric Scoop Shallow Elite, cro-mo rails
• Seatpost Cannondale DownLow Dropper, internal routing, 31.6, 125mm (S), 150mm (M), 170mm (L-XL)

EXTRA

• Extra 1 Lezyne Super HB E1000 w/ remote high beam switch

PLEASE NOTE THAT, BASED ON COMPONENT AVAILABILITY AND OTHER FACTORS, SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Geometry
