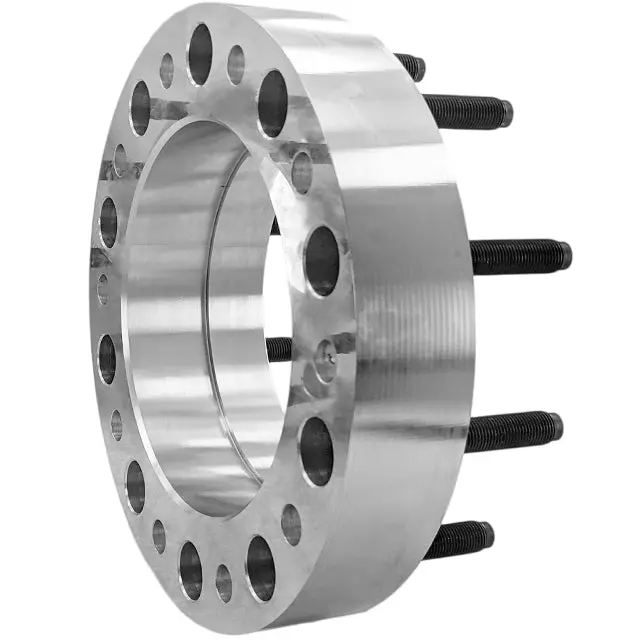

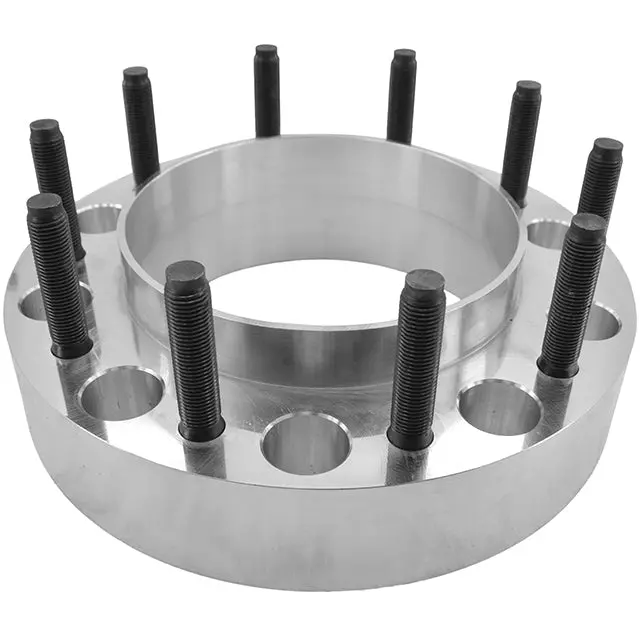

10×170 MM To 10×225 MM Hub Centric Wheel Adapters Spacers Billet Aluminum
** This Product Is Made To Order, May Take Up To 7 Business Days To Ship **
Fully Hub Centric.
Installation Hardware Included.
These adapters are typically only used in the front of F-450 & F-550 | Ram 4500 & Ram 5500 without the front factory steel adapter.
FEATURES
- Made Out of 6061 T-6 Aluminum Billet Bars
- These Adapters Will Work With Alcoa & Aftermarket Wheels
- Hub/Wheel Centric: Will Not Vibrate At High Speeds
- Improve Vehicles Handling Characteristics
- Enhance Vehicle Appearance; Aggressive Stance
- Specifically Design For Extreme Duty Vehicles, Towing Safe
- Mounting Hardware Included
SPECIFICATIONS
- Vehicle Bolt Pattern: 10×170 MM
- Vehicle Hub Bore: 125 MM
- Wheel Bolt Pattern: 10×225 MM
- Wheel Bore: 170.1 MM
- Thread Pitch: 14×1.5
- Thickness: Select Above
- Wheel Lip: 0.50″
- Material : Billet Aluminum 6061 T-6
- Hardware: 10.9 Steel
- Finish: Raw Aluminum
- Torque Specs: Factory Specs Recommended
- Pressed In Studs & Lug Nuts Included
VEHICLE COMPATIBILTY
- New Wheels Being Installed Must Be 10×225 MM.
| Year | Make | Model | Thread Pitch |
| 2005-2024 | Ford | F-450 10 Lug | 14×1.5 |
| 2005-2024 | Ford | F-550 10 Lug | 14×1.5 |
| 2005-2024 | Ram | 3500 10 Lug | 14×1.5 |
| 2005-2024 | Ram | 4500 10 Lug | 14×1.5 |
