Hub-Centric Wheel Adapters for Volkswagen – Seamless 5×100 mm to 5×112 mm Bolt Pattern Conversion

Description

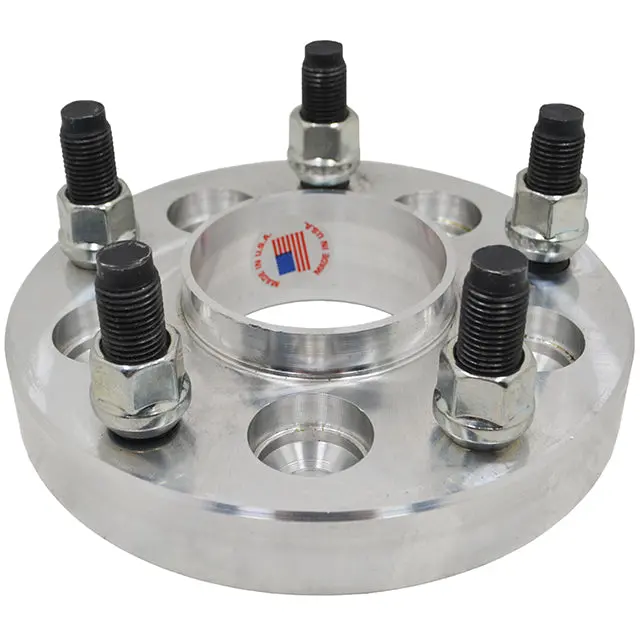

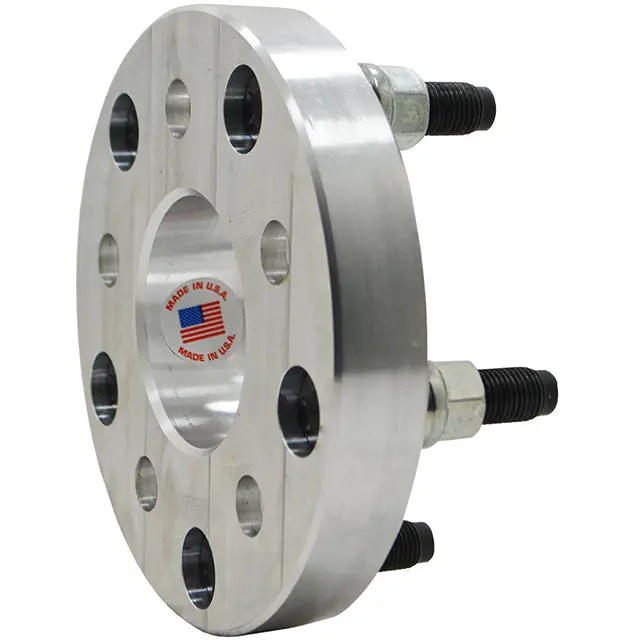

5×100 MM To 5×112 MM Wheel Adapters Hub Centric Conversion For Volkswagen

** This Product Is Made To Order, May Take Up To 5 Business Days To Ship **

Sold As : 1 Pc Wheel Spacers With Mounting Lug Bolts/ Lug Nuts

(If You Need A Complete Set, Select 4 Under Quantity)

Custom Wheel Spacers Available

SPECIFICATIONS

Wheel Spacer

• Vehicle Bolt Pattern: 5×100 MM
• Vehicle Hub Bore: 57.1 MM
• Wheel Bolt Pattern: 5×112 MM
• Wheel Bore: 57.1 MM | 66.56 MM
• Thread Pitch: 14×1.5
• Thickness: Select Above
• Material : Billet Aluminum 6061 T-6
• Hardware: 10.9 Steel
• Finish: Raw / Black Finish – Depends on Material Availability
• Torque Specs: Factory Specs Recommended

Lug Bolts

• Quantity: 5 Pcs Per Wheel Spacer
• Hex Size: 17 MM Short Head
• Seat: Conical
• Thread Pitch: 14×1.5
• Shank Length: 18 MM
• Torque Specs: Factory Specs Recommended
• Replacement Part #: VW-C1415-18SH

FEATURES

• Will Work With Factory & Aftermarket Wheels
• Hub/Wheel Centric: Will Not Vibrate At High Speeds
• Improve Vehicles Handling Characteristics
• Improve Incorrect Wheel Offsets
• Enhance Vehicle Appearance
• Installation Hardware Included

VEHICLE COMPATIBILTY

Year	Make	Model	Thread Pitch
1998-2010	Volkswagen	Beetle	14×1.5
1992-1998	Volkswagen	Golf (5 Lug)	14×1.5
1999-2006	Volkswagen	Golf GL-GLS	14×1.5
1999-2005	Volkswagen	GTI	14×1.5
1992-1998	Volkswagen	Jetta (5 Lug)	14×1.5
2001-2005	Volkswagen	Jetta (excluding 5th generation)	14×1.5
1990-1997	Volkswagen	Passat (5 Lug)	14×1.5

INSTALLATION INSTRUCTIONS

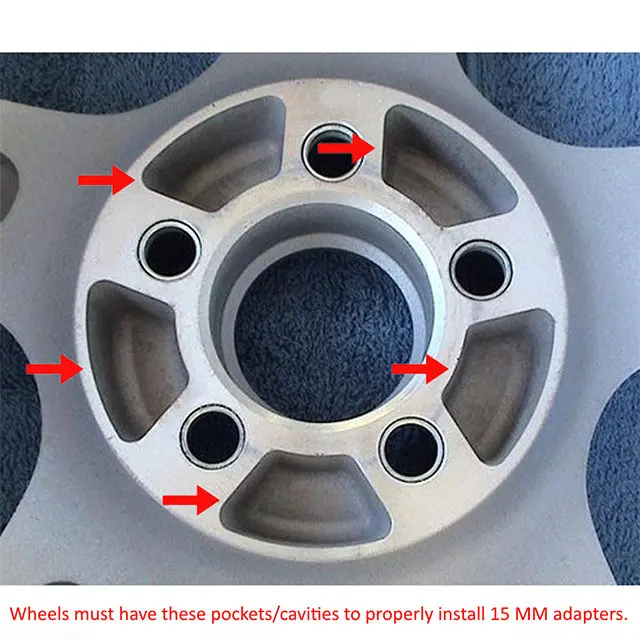

• Minimal Trimming of Your Factory Studs Is Required For Adapters 1.5″ & Smaller
• Detailed Installation Instructions Will Be Uploaded.



PRODUCT VIDEOS

• Product Videos Will Be Updated Soon

WARRANTY

• Limited Lifetime Warranty
