Hub-Centric 5x112mm to 5×5.5″ Wheel Adapters for Audi and Mercedes-Benz Vehicles

Description

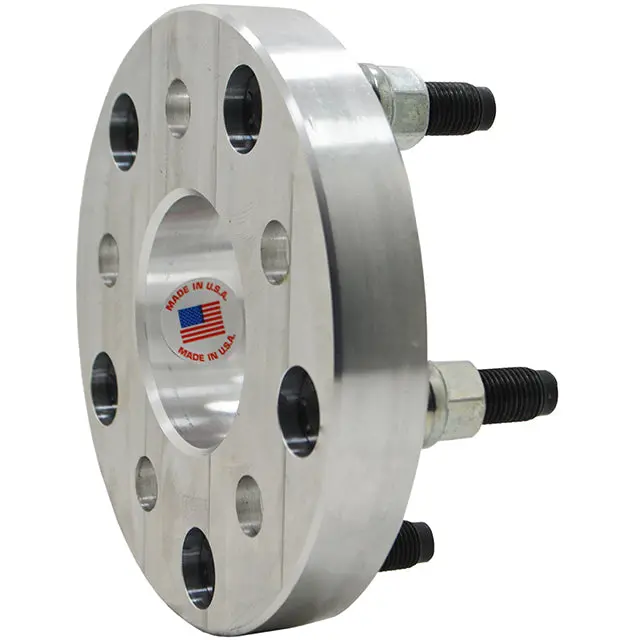

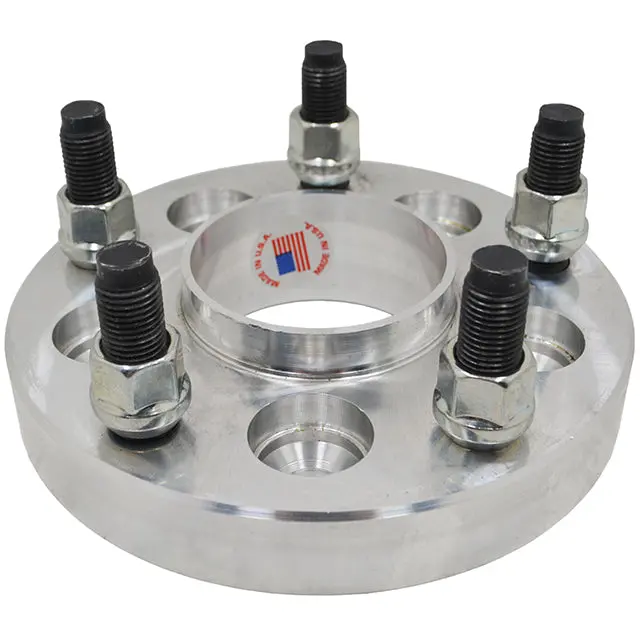

5×112 MM to 5×5.5″ Wheel Adapters Hub Centric Conversion for Audi & Mercedes-Benz

This product is made to order and may take up to 7 business days to ship.

Sold as: 1 piece wheel adapter with mounting lug bolts / lug nuts

If you need a complete set, select quantity 4.

Custom wheel adapters are also available.

Specifications

Wheel Adapter

• Vehicle Bolt Pattern: 5×112 MM
• Vehicle Hub Bore: 57.1 MM | 66.56 MM
• Wheel Bolt Pattern: 5×5.5″
• Wheel Bore: 77.8 MM | 87 MM | 108 MM
• Thread Pitch: 14×1.5
• Thickness: Select above
• Material: Billet Aluminum 6061-T6
• Hardware: 10.9 Steel
• Finish: Raw or Black Finish, depending on material availability
• Torque Specs: Factory specs recommended

Included Lug Bolts

• Quantity: 5 pcs per wheel adapter
• Hex Size: 17 MM short head
• Seat: Conical
• Thread Pitch: 14×1.5
• Shank Length: 18 MM
• Torque Specs: Factory specs recommended
• Replacement Part #: VW-C1415-18SH

Features

• Works with factory and aftermarket wheels
• Hub-centric and wheel-centric for a vibration-free ride at high speeds
• Helps improve handling characteristics
• Corrects improper wheel offset
• Enhances vehicle appearance
• Installation hardware included

Vehicle Compatibility

Year	Make	Model	Thread Pitch
2013-2020	Audi	All Road	14×1.5
2009-2020	Audi	A4	14×1.5
2009-2020	Audi	A5	14×1.5
2012-2020	Audi	A6	14×1.5
2012-2020	Audi	A7	14×1.5
2009-2020	Audi	A8	14×1.5
2009-2020	Audi	S4	14×1.5
2009-2020	Audi	S5	14×1.5
2009-2020	Audi	S6	14×1.5
2009-2020	Audi	S7	14×1.5
2012-2020	Audi	RS5	14×1.5
2014-2020	Audi	RS7	14×1.5
2009-2020	Audi	Q5	14×1.5
2014-2020	Audi	SQ5	14×1.5
2008-2014	Mercedes-Benz	C350	14×1.5
2008-2014	Mercedes-Benz	C63	14×1.5
2015-2019	Mercedes-Benz	C200	14×1.5
2015-2019	Mercedes-Benz	C220	14×1.5
2015-2019	Mercedes-Benz	C250	14×1.5
2015-2019	Mercedes-Benz	C300	14×1.5
2015-2019	Mercedes-Benz	C63	14×1.5
2010-2015	Mercedes-Benz	E350	14×1.5
2006-2013	Mercedes-Benz	S320	14×1.5
2006-2013	Mercedes-Benz	S350	14×1.5
2006-2013	Mercedes-Benz	S450	14×1.5
2006-2013	Mercedes-Benz	S550	14×1.5
2006-2013	Mercedes-Benz	S600	14×1.5
2006-2013	Mercedes-Benz	S63	14×1.5
2006-2012	Mercedes-Benz	R350	14×1.5
2006-2012	Mercedes-Benz	R500	14×1.5
2012-2019	Mercedes-Benz	ML250	14×1.5
2012-2019	Mercedes-Benz	ML350	14×1.5
2012-2019	Mercedes-Benz	ML400	14×1.5
2012-2019	Mercedes-Benz	GLE400	14×1.5
2012-2019	Mercedes-Benz	ML550	14×1.5
2012-2019	Mercedes-Benz	ML63	14×1.5
2012-2019	Mercedes-Benz	GLE63	14×1.5
2008-2015	Mercedes-Benz	GLK280	14×1.5
2008-2015	Mercedes-Benz	GLK300	14×1.5
2008-2015	Mercedes-Benz	GLK350	14×1.5
2014-2019	Mercedes-Benz	GL400	14×1.5
2013-2019	Mercedes-Benz	GL450	14×1.5
2012-2019	Mercedes-Benz	GL500	14×1.5
2013-2019	Mercedes-Benz	GL63	14×1.5
2019+	Mercedes-Benz	GLS450	14×1.5
2019+	Mercedes-Benz	GLS580	14×1.5

Installation Notes

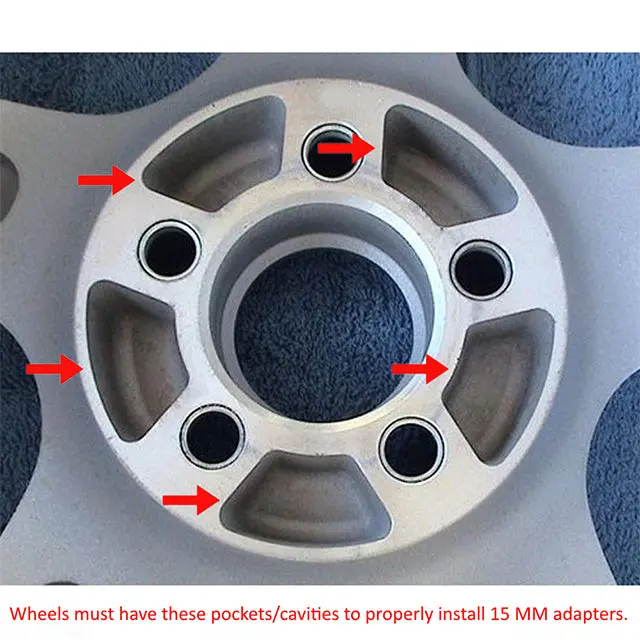

• Minimal trimming of factory studs is required for adapters 1.5″ thick and smaller.
• Detailed installation instructions will be provided.
