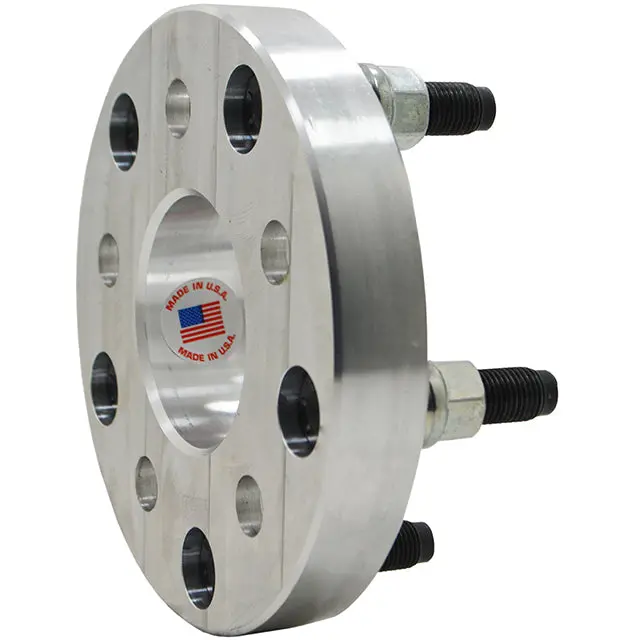

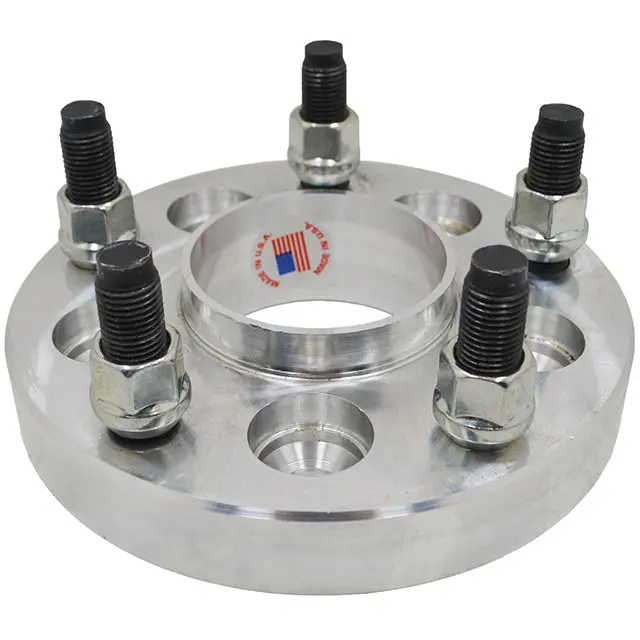

Billet Aluminum Hub-Centric Wheel Adapters: 5x110mm to 5×4.75″ Bolt Pattern Converter

Description

5×110 MM To 5×4.75″ Wheel Adapters Hub Centric Conversion Billet

** This Product Is Made To Order, May Take Up To 7 Business Days To Ship **

Sold As : 1 Pc Wheel Spacer Adapter With Mounting Lug Nuts

(If You Need A Complete Set, Select 4 Under Quantity)

Custom Wheel Spacers Available

SPECIFICATIONS

Wheel Spacer Adapter

• Vehicle Bolt Pattern: 5×110 MM
• Vehicle Hub Bore: 65.1 MM
• Wheel Bolt Pattern: 5×4.75″
• Wheel Bore:  66.9 MM | 70.3 MM | 72.56 MM | 74.1 MM
• Thread Pitch: 12×1.25
• Thickness: Select Above
• Material : Billet Aluminum 6061 T-6
• Finish: Raw / Black Finish – Depends on Material Availability
• Hardware Included: Yes (Pressed In Studs & Lug Nuts)
• Hardware Grade: 10.9 Steel
• Torque Specs: Factory Specs Recommended

Lug Bolts

• Quantity: 5 Pcs Per Wheel Spacer
• Hex Size: 17 MM Short Head
• Seat: Conical
• Thread Pitch: 12×1.25
• Shank Length: 18 MM
• Torque Specs: Factory Specs Recommended

FEATURES

• Will Work With Factory & Aftermarket Wheels
• Hub/Wheel Centric: Will Not Vibrate At High Speeds
• Improve Vehicles Handling Characteristics
• Improve Incorrect Wheel Offsets
• Enhance Vehicle Appearance
• Installation Hardware Included

VEHICLE COMPATIBILTY

Year	Make	Model	Thread Pitch
2015-2017	Chrysler	200	12×1.25
2013-2016	Dodge	Dart	12×1.25
2014-2021	Jeep	Cherokee	12×1.25
2018-2022	Jeep	Compass	12×1.25
2015-2022	Jeep	Renegade	12×1.25

INSTALLATION INSTRUCTIONS

• Detailed Installation Instructions Will Be Uploaded.



PRODUCT VIDEOS

• Product Videos Will Be Updated Soon

WARRANTY

• Limited Lifetime Warranty
