Description

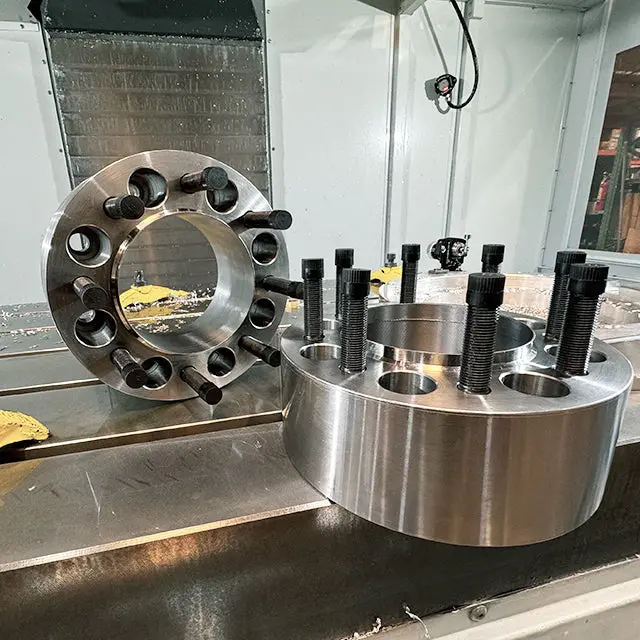

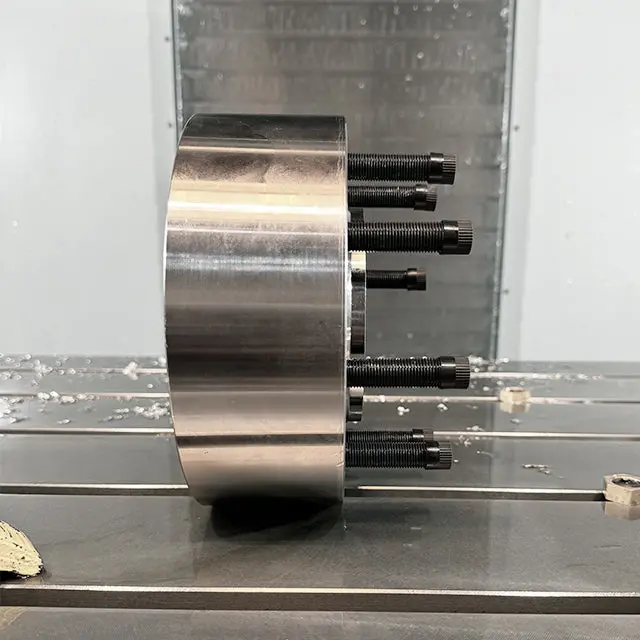

8×170 Wheel Spacers Hub Centric In Steel For 99-2026 Ford F-250 F-350
Fully Hub Centric Wheel Spacers
Made to Order: This product is made to order and not kept in stock.
Sold As: 1 Pc Wheel Spacer Adapter with Mounting Lug Nuts
Complete Set: If you need a complete set, select 4 under quantity.
Steel vs Aluminum: Steel is definitely stronger than aluminum, but it is also heavier. Ultimately, the choice depends on the customer’s preference.
Features
- Made Out Of 1018 Steel Cold Rolled Bars
- Compatible with both factory and aftermarket wheels.
- Hub/Wheel Centric design ensures no vibration at high speeds.
- Enhances vehicle handling characteristics.
- Provides an aggressive stance, improving vehicle appearance.
- Specifically designed for extreme duty vehicles and safe for towing.
- Includes all necessary mounting hardware.
- Comes with a limited lifetime warranty.
- Made in Lynwood, California, USA
Specifications
- Vehicle Bolt Pattern: 8×170 MM
- Vehicle Hub Bore: 125 MM
- Wheel Bolt Pattern: 8×170 MM
- Wheel Bore: 125 MM
- Thread Pitch: 14×1.5 | 14×2.0
- Thickness: 1″ – 5″
- Lip Thickness: 0.38″
- Material: 1018 Steel
- Hardware: Grade 8
- Finish: Raw Steel
- Torque Specs: Factory specs recommended
Vehicle Compatibility
| Year | Make | Model | Thread Pitch |
|---|---|---|---|
| 1999-2002 | Ford | F-250 | 14×2 |
| 1999-2002 | Ford | F-350 | 14×2 |
| 2003-2016 | Ford | F-250 | 14×1.5 |
| 2003-2016 | Ford | F-350 SRW | 14×1.5 |
| 2017-2022 | Ford | F-250 | 14×1.5 |
| 2017-2022 | Ford | F-350 SRW | 14×1.5 |
| 2023-2026 | Ford | F-250 | 14×1.5 |
| 2023-2026 | Ford | F-350 SRW | 14×1.5 |
Frequently Asked Questions
What is the maximum towing capacity?
Our wheel spacers and adapters will not limit your vehicle’s towing performance or capacity. When installed correctly, you will not experience any issues.
Installation Instructions
- It is very important that your studs do not extend past the face of the wheel spacer/adapter. If they do, you will need to trim them down.
- Minimal trimming of your factory studs is required for adapters 1.5″ or smaller.
- Torque Specifications: Use factory torque specifications to mount the wheel spacer adapter and your wheels.
- It is recommended to use blue or red Loctite on the vehicle stud side.
- We recommend coating it with protective paint to prevent rust.
